Technical Documentation
92875
1/2 HP Main Drain Stainless Steel Submersible Pump and Tether Float Switch
120 V, 60 Hz, 25 Ft. Cord
120 V, 60 Hz, 25 Ft. Cord
Product Features:
Continuous duty, thermally protected split capacitor motorPump will lift water up to 30 Ft. of vertical height
Corrosion resistant stainless steel construction
Large 1-1/4 in. discharge and 1-1/4 in. MPT x 1-1/2 in.
BARB adapter included
Intake screen removes easily for cleaning
Clog resistant stainless steel impeller
Will fit inside most 8 in. pool drains
Tether float switch for automatic operation
Technical Documentation

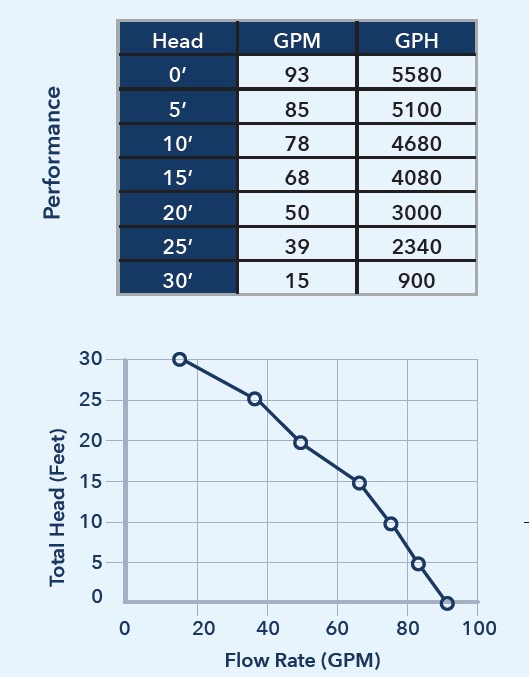

Performance:
- Performance: Flow Rate Up To 93 GPM
- Performance: Head Up To 30 Ft.
Technical Specifications:
- Single Phase
- Amps 11.4 A
- Discharge Location Top
- Discharge Size 1-1/4 in. with 1-1/4 in. MPT x 1-1/2 in. Barb Adapter included
- HP 1/2 HP
- Power Cord 25 Ft., SJTW, 18 Gauge, 3-Wire
- Removes Water Down To 8 in.
- Solids Handling 1/2 in.
- Switch Type Tether Float Switch
- Supply Voltage 120 V
Construction Characteristics:
- Fasteners Stainless Steel
- Impeller Stainless Steel
- Motor Shaft Stainless Steel
- Pump Base Stainless Steel
- Pump Body Stainless Steel
