92589

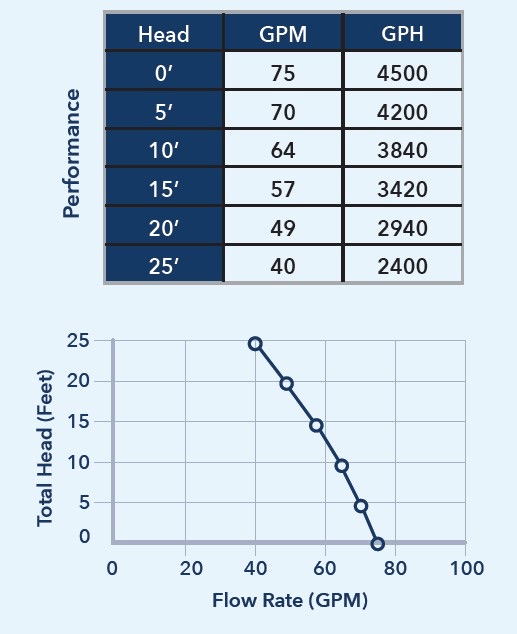

92589 Performance Curve

Technical Documentation

92589

1/2 HP Cast Iron and Stainless Steel Submersible Multi-Purpose Pump with Tether Float Switch
120 V, 60 Hz, 25 Ft. Cord, 25 Ft. Rope

Product Features:

Continuous duty, thermally protected - split capacitor motor

Pumps will lift water up to 25 Ft. of vertical height

Rugged stainless steel and cast iron construction

Large 2 in. discharge for high capacity pumping, with 1-1/2 in. NPT adapter included

Clog resistant thermoplastic vortex impeller

Garden hose adapter, BARB adapter and 25 Ft. nylon rope included

SJE Rhombus Vertical float switch with piggy-back power plug

Technical Documentation

Performance:

  • Performance: Flow Rate Up To 75 GPM
  • Performance: Head Up To 25 Ft.

Technical Specifications:

  • Single Phase
  • Amps 7.5 A
  • Discharge Location Side
  • Discharge Size 2 in. NPT with 1-1/2 in. NPT Adapter
  • HP 1/2 HP
  • Power Cord 25 Ft.
  • Removes Water Down To 1 in. (without switch installed)
  • Solids Handling 1/2 in.
  • Switch Type Vertical Float Switch
  • Switch ON / OFF Levels ON @ 8.5 in. / OFF @ 3 in.

Construction Characteristics:

  • Impeller Thermoplastic
  • Motor PSC Motor with Thermal Overload Protection
  • Motor Shaft Stainless Steel
  • Pump Base Cast Iron
  • Pump Body Stainless Steel
  • Shaft Seal Carbon / Ceramic / Stainless Steel

Certifications:

  • culus
  • csa
