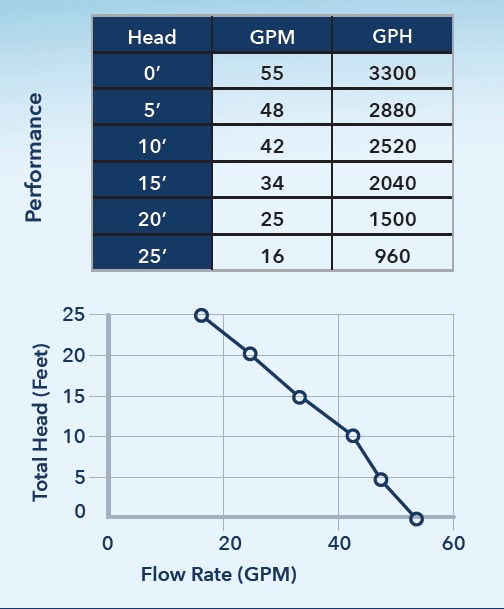

92570-25 Performance Curve

Technical Documentation

Manual

92570-25

1/2 HP Submersible Multi-Purpose Pump with Tether Float Switch
120 V, 60 Hz, 25 Ft. Cord

Product Features:

Continuous duty, thermally protected - split capacitor motor

Pumps will lift water up to 25 Ft. of vertical height

Tough thermoplastic construction

Large 1-1/2 in. discharge for high capacity pumping

Stainless steel impeller

SJE Rhombus Tether float switch with piggy-back power plug

Technical Documentation

Manual

Performance:

Performance: Flow Rate Up To 55 GPM
Performance: Head Up To 25 Ft.

Technical Specifications:

Single Phase
Amps 4.9 A
Discharge Location Side
Discharge Size 1-1/2 in. NPT
HP 1/2 HP
Power Cord 25 Ft.
Removes Water Down To 1 in. (without switch installed)
Solids Handling 3/8 in.
Switch Type Tether Float Switch
Switch ON / OFF Levels ON @ 10 in. / OFF @ 5 in.

Construction Characteristics:

Impeller Thermoplastic
Motor PSC Motor with Thermal Overload Protection
Motor Shaft Stainless Steel
Pump Base Thermoplastic
Pump Body Thermoplastic
Shaft Seal Carbon / Ceramic / Stainless Steel
