92395

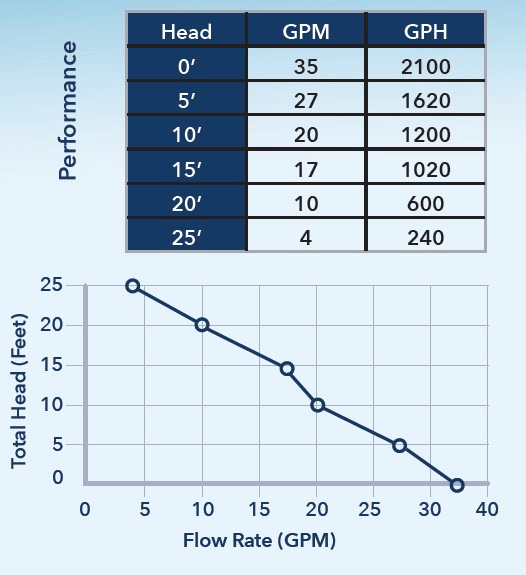

92395 Performance Curve

Technical Documentation

Manual

92395

1/3 HP Automatic Pool Cover Pump
120 V, 60 Hz, 25 Ft. Cord

Product Features:

Activates in 1-1/2 in. of water

High impact PVC construction with three built-in handles for ease of transport and installation

1 in. NPT horizontal discharge

3/4 in. Garden hose adapter included

Large base design for added stability

Intake screen filters debris

Size: 12-1/2 in. W x 12-1/2 in. D x 10 in. H

SJE Rhombus® Internal automatic vertical float switch

Technical Documentation

Manual

Performance:

Performance: Flow Rate Up To 35 GPM
Performance: Head Up To 25 Ft.

Technical Specifications:

Single Phase
Amps 3.8 A
Discharge Location Side
Discharge Size 1 in. with 3/4 in. GHT Adapter
HP 1/3 HP
Insulation Class A
Power Cord 25 Ft., SJTW, 18 Gauge, 3-Wire
Removes Water Down To 3/4 in.
Switch Type Vertical Float Switch
Switch ON / OFF Levels ON at 1-1/2 in. / OFF at 3/4 in.
Supply Voltage 120 Volts
Watts 11 Lbs.
Weight 11 Lbs.

Construction Characteristics:

Cooling Oil-Cooled
Fasteners Stainless Steel
Gasket Bruna-N
Impeller Thermoplastic
Motor PSC Motor with Thermal Overload Protection
Motor Bearing Ball Bearing (upper/lower)
Motor Shaft Stainless Steel
Pump Base High Impact PVC
Pump Body High Impact PVC
Shaft Seal Carbon/Ceramic and Stainless Steel

Certifications:
