92349

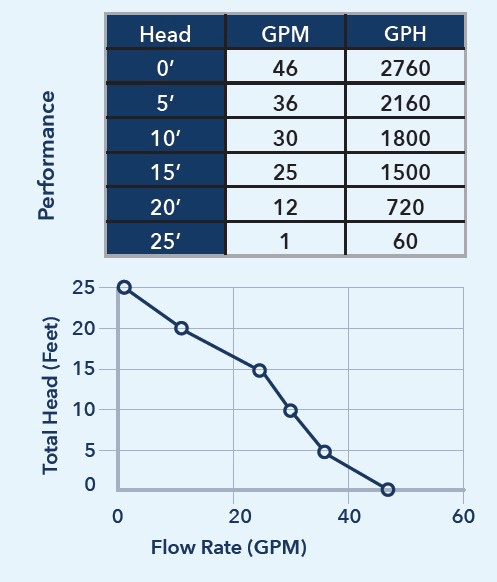

92349 Performance Curve

Technical Documentation

92349

1/3 HP Cast Iron Submersible Multi-Purpose Pump with Vertical Float Switch
120 V, 60 Hz, 25 Ft. Cord, 25 Ft. Rope

Product Features:

Continuous duty, thermally protected - split capacitor motor

Pumps will lift water up to 25 Ft. of vertical height

Rugged cast iron construction

Large 1-1/2 in. discharge for high capacity pumping

Stainless steel impeller

Garden hose adapter, BARB adapter and 25 Ft. nylon rope included

SJE Rhombus Vertical float switch with piggy-back power plug

Technical Documentation

Performance:

  • Performance: Flow Rate Up To 46 GPM
  • Performance: Head Up To 25 Ft.

Technical Specifications:

  • Single Phase
  • Amps 4.1 A
  • Discharge Location Side
  • Discharge Size 1-1/2 in. NPT
  • HP 1/3 HP
  • Power Cord 25 Ft.
  • Removes Water Down To 1 in. (without switch installed)
  • Solids Handling 1/2 in.
  • Switch Type Vertical Float Switch
  • Switch ON / OFF Levels ON @ 6.5 in. / OFF @ 2 in.

Construction Characteristics:

  • Impeller Stainless Steel
  • Motor PSC Motor with Thermal Overload Protection
  • Motor Shaft Stainless Steel
  • Pump Base Cast Iron
  • Pump Body Cast Iron
  • Shaft Seal Carbon / Ceramic / Stainless Steel

Certifications:

  • culus
  • csa
