92269

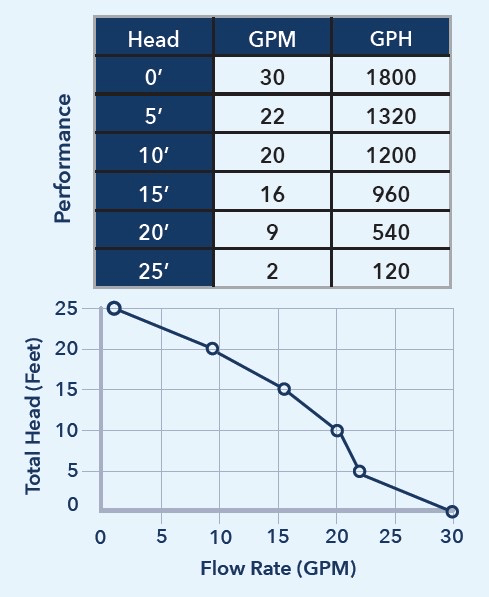

92269 Performance Curve

Technical Documentation

Manual

92269

1/4 HP Submersible Multi-Purpose Pump with Vertical Float Switch
120 V, 60 Hz, 25 Ft. Cord, 25 Ft. Rope

Product Features:

Continuous duty, thermally protected - split capacitor motor

Pumps will lift water up to 25 Ft. of vertical height

Tough thermoplastic construction

Large 1-1/4 in. or 1-1/2 in. discharge for high capacity pumping

Thermoplastic impeller

Garden hose adapter and 25 in. nylon rope included

SJE Rhombus float switch with piggy-back power plug

Technical Documentation

Manual

Performance:

Performance: Flow Rate Up To 30 GPM
Performance: Head Up To 25 Ft.

Technical Specifications:

Single Phase
Amps 3.8 A
Discharge Location Top
Discharge Size 1-1/4 in. x 1-1/2 in. NPT
HP 1/4 HP
Power Cord 25 Ft.
Removes Water Down To 1/4 in. (without switch installed)
Solids Handling 1/8 in.
Switch Type Vertical Float Switch
Switch ON / OFF Levels ON @ 6.5 in. / OFF @ 2 in.

Construction Characteristics:

Impeller Thermoplastic
Motor PSC Motor with Thermal Overload Protection
Motor Shaft Stainless Steel
Pump Base Thermoplastic
Pump Body Thermoplastic
Shaft Seal Carbon / Ceramic / Stainless Steel

Certifications:
