Technical Documentation
92189
1 HP Cast Iron and Stainless Steel Submersible Multi-Purpose Pump with Tether Float Switch
120 V, 60 Hz, 25 Ft. Cord, 25 Ft. Rope
120 V, 60 Hz, 25 Ft. Cord, 25 Ft. Rope
Product Features:
Continuous duty, thermally protected - split capacitor motorPumps will lift water up to 25 Ft. of vertical height
Rugged stainless steel and cast iron construction
Large 2 in. discharge for high capacity pumping, with 1-1/2 in. NPT adapter included
Clog resistant thermoplastic vortex impeller
Garden hose adapter, BARB adapter and 25 Ft. nylon rope included
SJE Rhombus Tether float switch with piggy-back power plug
Technical Documentation

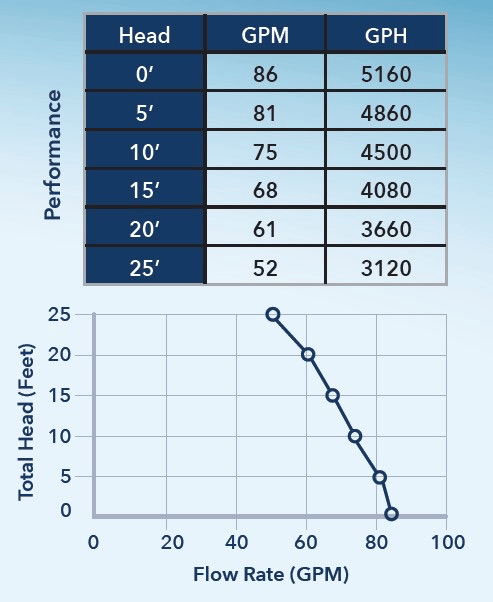

Performance:
- Performance: Flow Rate Up To 86 GPM
- Performance: Head Up To 25 Ft.
Technical Specifications:
- Single Phase
- Amps 12 A
- Discharge Location Side
- Discharge Size 2 in. NPT with 1-1/2 in. NPT Adapter
- HP 1 HP
- Power Cord 25 Ft.
- Removes Water Down To 1 in. (without switch installed)
- Solids Handling 1/2 in.
- Switch Type Tether Float Switch
- Switch ON / OFF Levels ON @ 16 in. / OFF @ 8 in.
Construction Characteristics:
- Impeller Thermoplastic
- Motor PSC Motor with Thermal Overload Protection
- Motor Shaft Stainless Steel
- Pump Base Cast Iron
- Pump Body Stainless Steel
- Shaft Seal Carbon / Ceramic / Stainless Steel
