91875

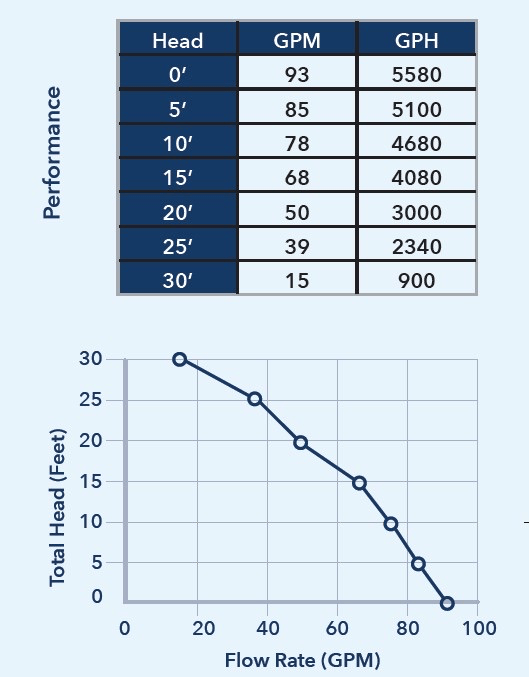

91875 Performance Curve

Technical Documentation

Manual

91875

1/2 HP Main Drain Stainless Steel Submersible Pump
120 V, 60 Hz, 25 Ft. Cord

Product Features:

Continuous duty, thermally protected split capacitor motor

Pump will lift water up to 30 Ft. of vertical height

Corrosion resistant stainless steel construction

Large 1-1/4 in. discharge and 1-1/4 in. MPT x 1-1/2 in.
BARB adapter included

Intake screen removes easily for cleaning

Clog resistant stainless steel impeller

Will fit inside most 8 in. pool drains

Technical Documentation

Manual

Performance:

Performance: Flow Rate Up To 93 GPM
Performance: Head Up To 30 Ft.

Technical Specifications:

Single Phase
Amps 11.4 A
Discharge Location Top
Discharge Size 1-1/4 in. with 1-1/4 in. MPT x 1-1/2 in. Barb Adapter included
HP 1/2 HP
Power Cord 25 Ft., SJTW, 18 Gauge, 3-Wire
Removes Water Down To 8 in.
Solids Handling 1/2 in.
Switch Type Manual Operation
Supply Voltage 120 V

Construction Characteristics:

Fasteners Stainless Steel
Impeller Stainless Steel
Motor Shaft Stainless Steel
Pump Base Stainless Steel
Pump Body Stainless Steel

Certifications:
