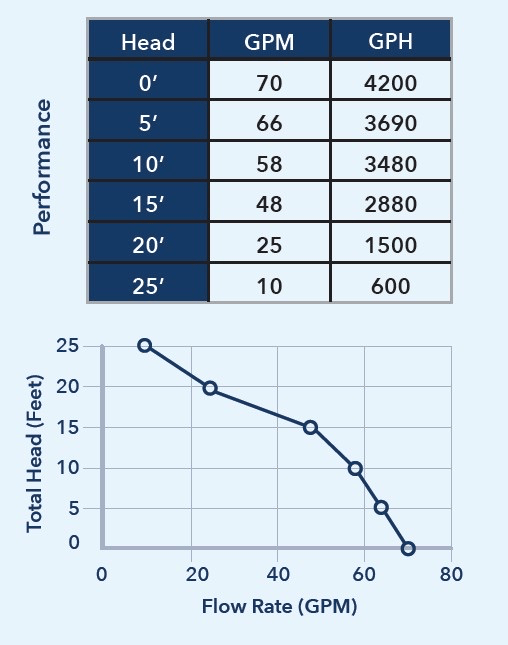

91505 Performance Curve

Technical Documentation

Manual

91505

1/2 HP Cast Iron Submersible Multi-Purpose Utility Pump
120 V, 60 Hz, 25 Ft. Cord

Product Features:

Continuous duty, thermally protected - split capacitor motor

Pumps will lift water up to 25 Ft. of vertical height

Rugged cast iron construction

Large 1-1/2 in. discharge for high capacity pumping

Can be used as a sump pump by adding an optional float switch

Technical Documentation

Manual

Performance:

Performance: Flow Rate Up To 70 GPM
Performance: Head Up To 25 Ft.

Technical Specifications:

Single Phase
Amps 7.6 A
Discharge Location Side
Discharge Size 1-1/2 in. NPT
HP 1/2 HP
Power Cord 25 Ft.
Removes Water Down To 1/8 in.
Solids Handling 1/2 in.
Switch Type Manual Operation

Construction Characteristics:

Impeller Thermoplastic
Motor PSC Motor with Thermal Overload Protection
Motor Shaft Stainless Steel
Pump Base Cast Iron
Pump Body Cast Iron
Shaft Seal Carbon / Ceramic / Stainless Steel
