91197

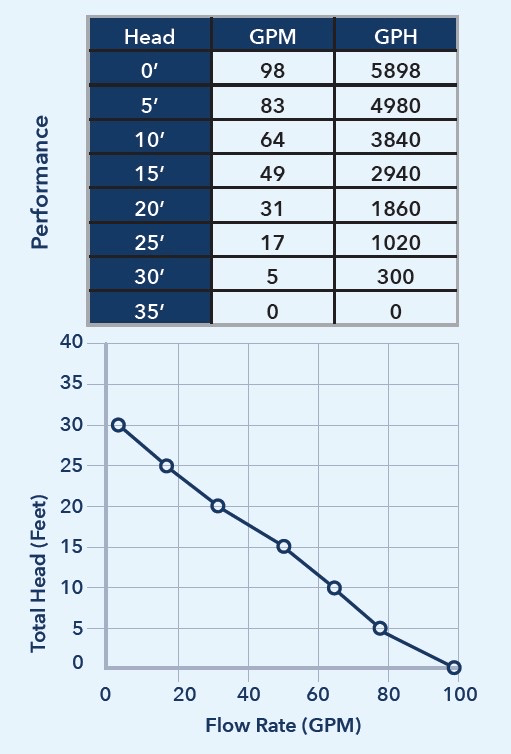

91197 Performance Curve

Technical Documentation

91197

1 HP Stainless Steel Submersible, Oil-Cooled Multi-Purpose Pump 120 V, 60 Hz, 25 Ft. Cord

Product Features:

Continuous duty, thermally protected - split capacitor motor

Pumps will lift water up to 35 Ft. of vertical height

Corrosion resistant stainless steel construction

Large 1-1/2 in. discharge for high capacity pumping

Clog resistant stainless steel impeller

Intake screen removes easily for cleaning

Compact 7-3/4 in. width easily fits in many openings

Technical Documentation

Performance:

  • Performance: Flow Rate Up To 98 GPM
  • Performance: Head Up To 35 Ft.

Technical Specifications:

  • Single Phase
  • Amps 11.4 A
  • Discharge Location Top
  • Discharge Size 1-1/2 in. NPT
  • HP 1 HP
  • Power Cord 25 Ft.
  • Solids Handling 1/8 in.
  • Switch Type Manual Operation

Construction Characteristics:

  • Impeller Stainless Steel
  • Motor PSC Motor with Thermal Overload Protection
  • Motor Shaft Stainless Steel
  • Pump Base Stainless Steel
  • Pump Body Stainless Steel
  • Shaft Seal Carbon / Ceramic / Stainless Steel

Certifications:

  • csa
