Technical Documentation
91029
1/5 HP Submersible Multi-Purpose Utility Pump
120 V, 60 Hz, 25 Ft. Cord, 25 Ft. Rope
120 V, 60 Hz, 25 Ft. Cord, 25 Ft. Rope
Product Features:
Continuous duty, thermally protected split capacitor motorPump will lift water up to 25 Ft. of vertical height
Tough thermoplastic construction
Large 1-1/4 in. discharge for high capacity pumping
25 in. nylon rope and garden hose adapter included
Technical Documentation

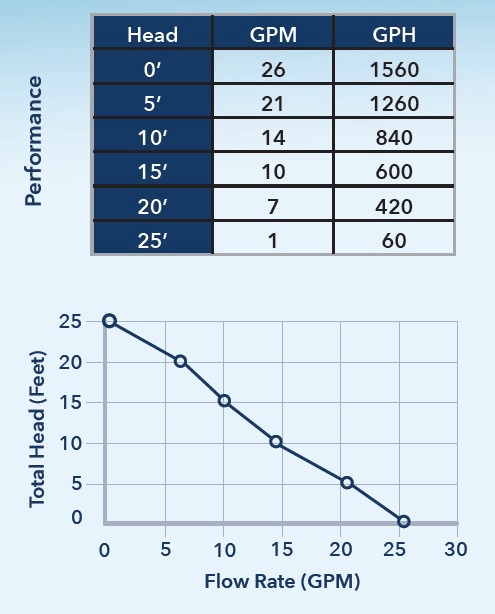

Performance:
- Performance: Flow Rate Up To 26 GPM
- Performance: Head Up To 25 Ft.
Technical Specifications:
- Single Phase
- Amps 3.6 A
- Discharge Location Top
- Discharge Size 1-1/4 in.
- HP 1/5 HP
- Power Cord 25 Ft.
- Removes Water Down To 1/8 in.
- Solids Handling 1/8 in.
- Switch Type Manual Operation
Construction Characteristics:
- Motor PSC Motor with Thermal Overload Protection
- Pump Base Reinforced Thermoplastic
- Pump Body Reinforced Thermoplastic
